Easy operation scrap tire recycling line

Name: Easy operation scrap tire recycling line
Brand: xinda
Price: 1 USD

Buy cheap Easy operation scrap tire recycling line product

Place of Origin : Jiangsu, China

Brand Name : xinda

Model Number : CXFJ-28

Certification : CE,ISO,CCC,CQC

Supply Ability : 1 Set/Sets per Month

Packaging Details : Wooden crate

MOQ : 1 Piece/Pieces

Price : Negotiable

Type : Tire Machine

Condition : New

Tire Machine Type : Tire Recycling Machine

Voltage : 380V 50Hz

Key word : machine

Weight : 1.2T

Warranty : 1year

Power(W) : 30810W

After-sales Service Provided : Engineers available to service machinery overseas

Port : SHANGHAI

Contact Now

Product Description

Easy operation scrap tire recycling line

Introduction
Developed by adopting advanced domestic and overseas technology, it is widely used in natural, synthetic rubber and plastic powder production. It is mainly composed of miller, collector, draught fan, cyclone and control cabinet, etc.
Structure and Principle

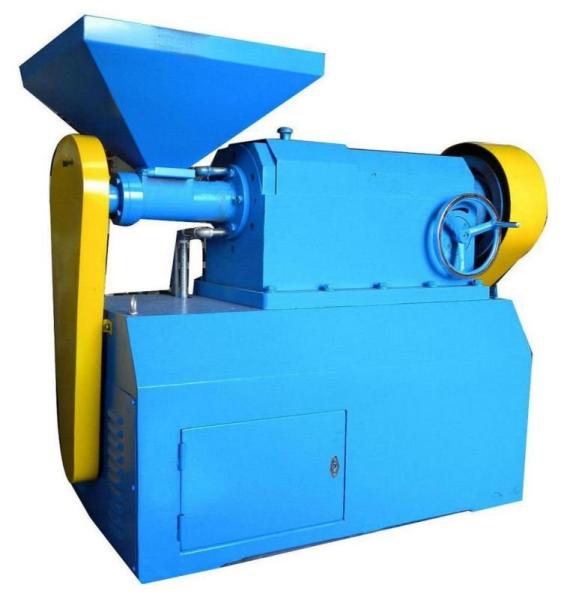

The machine is composed of one or multiple millers, collector and control system. The miller consists of frame, motor, stepless feeding motor, feeding device, fixed and rotary discs, the basic principle is to mill and grind rubber into powder by the relative movement of fixed and rotary discs. Wind and water cooling system can ensure the milling output quality. Feeding device use stepless motor, the feeding speed can be changed according to production requirements.
With such features as low noise, high output, easy operation and maintenance, no pollution and even milling size, etc.

Model	28-1	28-2	28-3	28-4	28-5	28-6	28-8
Capacity(Kg/H)	60~200	120~400	180~600	240~800	300~1000	360~1200	480~1600
Feeding size(mesh)	5~20	5~20	5~20	5~20	5~20	5~20	5~20
Output size(mesh)	40~200	40~200	40~200	40~200	40~200	40~200	40~200
Motor power(Kw)	30+0.75+3	30×2+0.75×2+4	30×3+0.75×3+5.5	30×4+0.75×4+7.5	30×5+0.75×5+11	30×6+0.75×6+15	30×8+0.75×8+18.5
Milling temperature(℃)	≤80	≤80	≤80	≤80	≤80	≤80	≤80
Weight(T)	1.8	3	4.5	6.2	8	10	13.8
Dimension(m)	2.5×2.5×2.8	4×2.5×2.8	5.5×2.5×2.8	7×2.5×3.2	8.5×2.5×3.2	10×2.5×3.8	13×2.5×3.8

ABOUT US

CUITURE

China Xinda Machinery Technology Co., Ltd, located at Jiangyin City, the famous city of Jiangsu Province and founded in 1996, is a renowned high-tech enterprise specializing in R&D, manufacture and marketing of complete waste tire fine rubber powder production plant in ambient process and waste tire recycling machineries. and we also manufacturea all kinds of Crusher, Grinder,Screener,Drying equipment,Mixing Machines etc Food,Chemical and Medicine industries. For Having our own import and export rights, we are member of China Rubber Industry Association and ISO9001(2008)certified with strong technology force, fine workmanship and full manufacturing equipment and facilities.

Our business concept: "clience leading, Quality First, Customer Supremeparamountcy, Service Superior and Spirit of Pursuing Superiority, Creating Excellence" Advocating environment protection, optimal use of limited resources, strive to develop recycling economy and green industry to benefit people of the world.
